Brooklyn Mass Timber House
âThe building exemplifies how modern methodologies can be used to re-purpose and enhance existing historic structures.â – Dezeen
Located in Brooklynâs Clinton Hill neighborhood is the Mass Timber House, a former carriage house repurposed for the 21st century. It is the first single-family residence built using mass timber methods in New York City â a case study in adaptive re-use of historic structures with modern technologies. Sustainability, construction efficiency and longevity were at the forefront of the approach for this project.
In response to the dual environmental and housing crises, our studio set ourselves the task of dismantling and recycling the existing, but damaged, components from the original structure, dating to 1880, then reforming and enlarging the existing building using new components that could themselves be recycled or reworked in 100 years without loss or degradation.
Despite having lost much of its original character through previous Ownerâs renovations, the façade of the house adheres to New York Cityâs Landmarks Preservation Commission guidelines, maintaining the historic integrity of the structure, originally built in 1873. It is now restored back to its symmetrical, bold, redbrick origins with dramatic arching windows and dark details that harken back to the time it was built.
The life cycle of our construction materials was also closely considered. Unlike traditional materials, our Mass Timber House considers the goal of reusing the materials used for one build into another. We approached the project with the lifetime of the home in mind. Suppose the zoning laws for this part of Brooklyn change a century from now; we wanted to ensure that should the house need to be replaced at some point in the future, the materials used within could be repurposed and the building itself could be repurposed or expanded without producing waste.
âFor natural light, Mr. Schiller introduced a large skylight near the center of the building, directly above an open staircase that functions as a light well. At the bottom of the stairs, he filled a three-foot-deep mechanical pit with soil.â – The New York Times

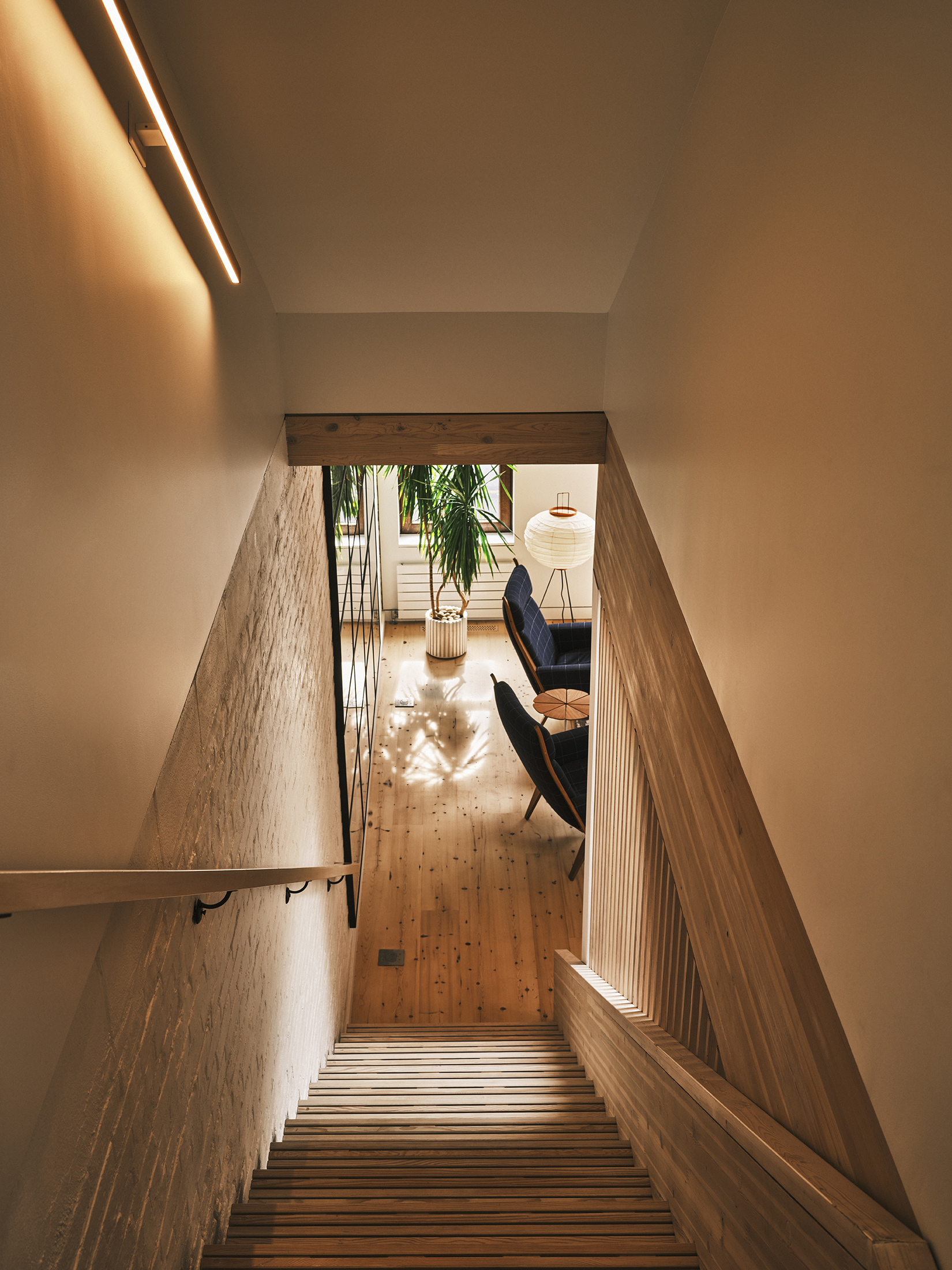

A three-story Douglas Fir glue-laminated stair and second-floor bridge carve through the center of the house, tying in seamlessly with the recycled wood floors and mass timber ceilings. The slat stair treads allow a new skylight to filter light all the way to the ground floor, where an old coal ash pit has been repurposed as a planter well to stimulate the production of clean air within the building. The majority of the dowels and screws hidden within the slatted members are all wood. The only metal screws and bolts are installed beneath concealed wooden covers that slip off. The whole system can be tightened, loosened, or entirely dismantled without waste or heavy tools. Like the building structure, this mass timber staircase was fabricated off site and then installed in a matter of days.

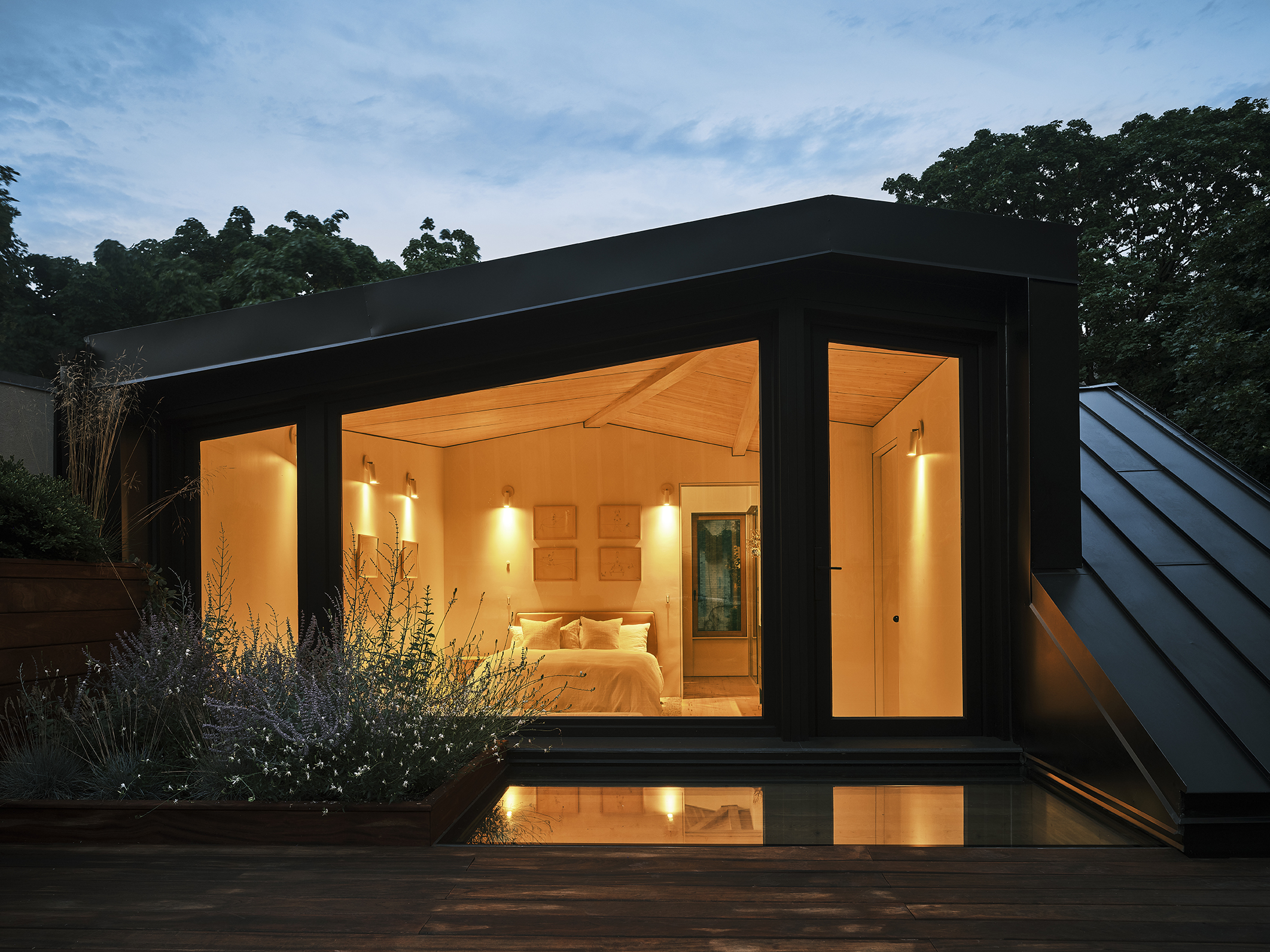

To take full advantage of the homeâs location, the newly added primary suite on the top floor features picture windows and a terrace with stunning views of one of New York Cityâs few Gothic Revival style cathedrals. In the face of pandemic shortages, we elected to partner with a local wood window fabricator and manufactured all the buildingâs custom windows in wood a few blocks away in the Navy Yard. This approach reduced costs from large corporate window manufacturers and allowed us to detail the windows specifically for this project (in solid timber) in unique ways including the fifteen-foot-wide pyramidal end to end wall of glass on the third-floor roof deck.
A skylight and second-floor bridge allow light to filter down through the centre of the stairs and its slatted wooden treads and railingsâ – Dezeen
Material inventions and experiments are among the highlights of the interior aesthetic. The flooring is recycled hardwood from the buildingâs original structural beams. We removed the water and fire damaged parts of the original structure, cleared it of iron nails, and took it to Tri-Loxâs (our local lumber partner specializing in sustainably forested manufacturing) millwork shop one mile away in Brooklyn for processing. They dried the beams out, cut them down to a usable size and sent them back to us for use as flooring to extend the utility of these old-growth beams another one hundred years. All of this happened within a 3.7-mile radius further reducing the carbon footprint of the project.
We collaborated with Stickbulb, a NYC-based B-corp that specializes in merging the latest lighting technology with locally salvaged and responsibly sourced wood, to develop the first Electrified Laminated Timber (ELT) installation. ELT is a patent-pending system that seamlessly integrates electrical components into mass timber structures. The design carves light-reflective coves into the gaps between timber elements. Features for the lighting system were milled into the wooden panels at the factory before they were shipped to site, allowing for a system of custom-designed lighting elements to flush-fit into place without the need for fasteners. This system has the potential to reduce the embodied carbon of mass-timber buildings by eliminating unnecessary parts and metal enclosures.
âWeâre blessed to have so much light and air in the middle of busy New York,â Mr. Schiller said. âIt feels like living in twice as many square feet.â – The New York TimesÂ
The dark cabinetry throughout the house is clad in recycled wood veneer that Schiller Projects salvaged from a commercial project in Manhattan, and provides a contrast against the otherwise light, bleached wood tones throughout the homeâs interior.
The mass timber construction methodology we designed made it possible for us to create a beautiful, ecologically friendly home in a fraction of the construction time utilizing traditional methods despite the difficulties of building in a dense urban center. As a construction technology, mass timber replaces carbon-heavy materials, such as steel and concrete, with much lighter, long-span, and fire-resistant glue-laminated timber floors. The lighter building material allows for faster transport, creates the opportunity for on-site construction and expansion that easily sits on top of 100+-year-old brick walls, and results in a cost-efficient product with a comparatively small carbon footprint.
The home was finally completed at the beginning of this year⌠Since then, the family has relaxed into living in a space that feels almost as green as a park.⠖ The New York Times
The Mass Timber House represents what modern architecture can be â a marrying of the past and future through design and sustainable thinking. The building exemplifies how modern methodologies can be used to repurpose and enhance existing historic structures. Instead of replacing history, it is possible to refresh what is already here. We can use technology to update existing structures quickly and efficiently, rather than start from scratch, and still come to a beautiful, sustainable result.
Photo Credits: Construction by Jonathan Miller / Completed Project by Frank Frances
In The Press
The New York Times, September 2023 (Digital & Print)
gb&d, February 2024
Architectural Digest Italia, November 2023
Dezeen, October 2023
